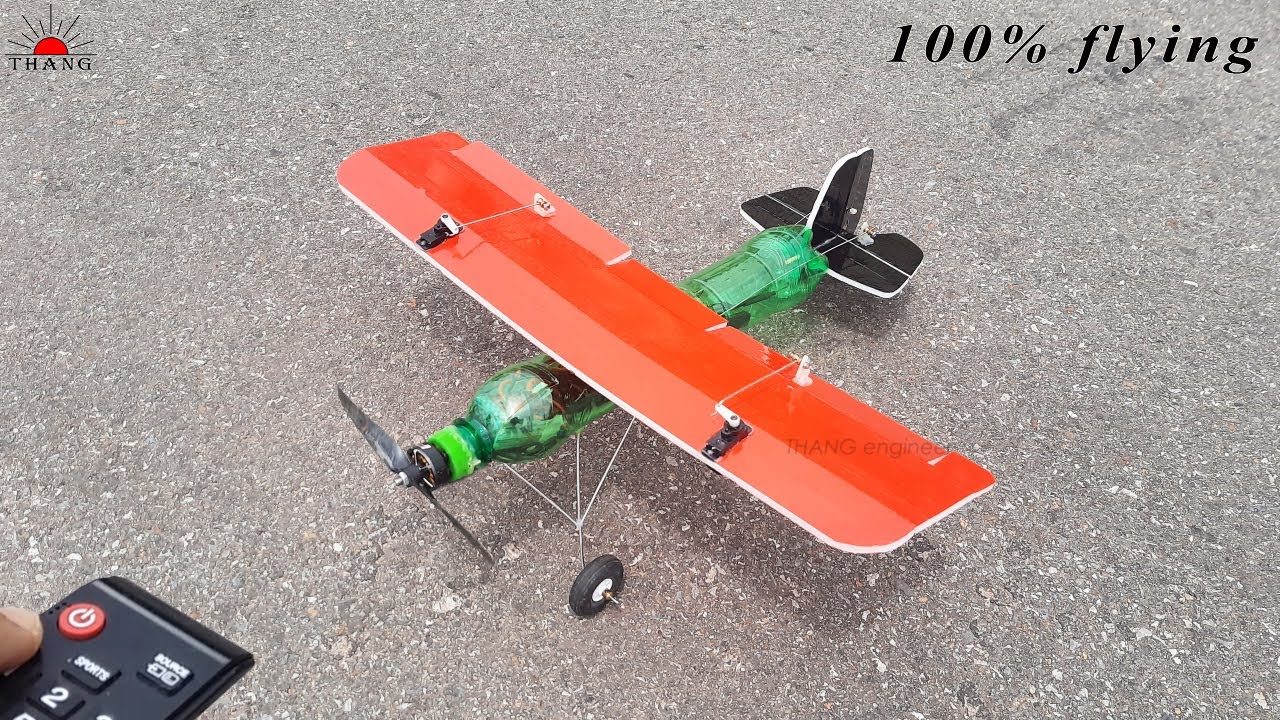

How to Make a Remote Control Plane With Camera? Step-by-Step Guide

Have you ever dreamed of soaring through the sky and capturing breathtaking views from above? Building your own remote control plane with a camera lets you do just that.

Not only will you get the thrill of flying, but you’ll also see the world from a unique perspective — all controlled by you. In this guide, you’ll discover simple steps to create your very own RC plane equipped with a camera, even if you’re a beginner.

Ready to turn your vision into reality? Keep reading, because your first flight with stunning aerial footage is just around the corner.

You May Like – Best One

Choosing The Right Airframe

Choosing the right airframe is the first step to build a remote control plane with a camera. The airframe supports the camera and all electronics. It must be strong but light enough to fly well. The design affects how stable and easy the plane is to control. Picking the right airframe makes your build smoother and your flights more fun.

Materials And Design Options

Common materials include foam, balsa wood, and plastic. Foam is light and easy to shape. It absorbs crashes well, making it good for beginners. Balsa wood is lightweight and strong but needs careful handling. Plastic airframes offer durability but can be heavier.

Designs vary from simple gliders to complex models. A high-wing design gives better stability. Low-wing planes are faster and more agile. Choose a design that fits your flying style and camera setup.

Size And Weight Considerations

The size of the airframe affects flight time and control. Larger planes carry bigger cameras but need more power. Small planes are easier to carry and fly but limit camera options.

Weight is key. Heavy planes need stronger motors and batteries. Keep the airframe light to improve flight time. Balance the weight of the camera and electronics carefully. A well-balanced plane flies smoother and lasts longer in the air.

Selecting Camera And Fpv Equipment

Selecting the right camera and FPV (First Person View) equipment is key to a successful remote control plane project. The camera captures the flight view, while the FPV gear sends live video to your screen or goggles. This setup lets you experience flying as if you were inside the plane. Choosing the correct components impacts video quality, flight time, and control range.

Types Of Cameras For Rc Planes

Small, lightweight cameras suit RC planes best. Action cameras offer good video quality but can be heavy. Mini FPV cameras are very light and designed for real-time video transmission. Some models have wide-angle lenses for a broad view. Look for cameras with good resolution, low power use, and easy mounting options.

Video Transmitters And Receivers

The video transmitter sends the live feed from the camera to your receiver. Choose a transmitter with enough range for your flying area. Frequency options include 5.8 GHz, which is common for FPV flying. The receiver picks up the signal and displays it on a monitor or goggles. Make sure both transmitter and receiver support the same frequency.

Power Requirements

FPV equipment needs stable power during flight. Check the voltage and current needs of your camera and transmitter. Use a lightweight battery that fits your plane’s size and weight limits. Some setups share power with the plane’s main battery, while others use separate batteries. Efficient power management helps keep flight time longer and signals steady.

Gathering Electronics And Controls

Gathering the right electronics and controls is key to building a remote control plane with a camera. Each component must work well with others. This section covers motors, ESCs, flight controllers, and remote control systems. These parts help your plane fly smoothly and send video back to you.

Motors And Escs

Motors give the plane its power to fly. Brushless motors are popular for their strength and light weight. Choose motors that match your plane size and weight. ESCs, or Electronic Speed Controllers, control the motor speed. They receive signals from the flight controller and adjust power. Make sure the ESC matches the motor’s voltage and current needs.

Flight Controllers

The flight controller is the brain of the plane. It keeps the plane stable and controls its movements. Some flight controllers come with built-in GPS and sensors. This helps with steady flying and navigation. Choose a flight controller that supports your remote control system and camera setup. A simple, reliable controller suits beginners best.

Remote Control Systems

The remote control system lets you fly the plane from a distance. It includes a transmitter and a receiver. The transmitter is in your hand. The receiver goes inside the plane. Choose a system with a strong signal and good range. Many pilots prefer 2.4 GHz radios for clear control. Make sure your system supports multiple channels for camera control and flight commands.

Assembling The Airframe

Assembling the airframe is a crucial step in building your remote control plane with a camera. The airframe forms the main structure that holds all parts together. A strong and balanced airframe ensures smooth flight and stability for your camera shots. Focus on precise construction and secure attachments for best results.

Constructing Wings And Fuselage

Start by shaping the wings from lightweight materials like balsa wood or foam. Keep the wings symmetrical to maintain balance. Attach spars inside the wings for extra strength. Build the fuselage to connect the wings and house the electronics. Use glue or screws to fix parts firmly. Check alignment carefully to avoid flight problems.

Mounting The Motor And Propeller

Fix the motor at the front or rear of the fuselage, depending on your design. Secure the motor mount tightly to reduce vibration. Attach the propeller to the motor shaft with a proper adapter. Ensure the propeller spins freely without wobbling. Test the motor’s direction before final assembly to match the control inputs.

Installing Control Surfaces

Attach the elevator and rudder at the tail end of the plane. Fix the ailerons on the wings, allowing roll control. Use hinges that allow smooth movement without gaps. Connect control horns to each surface for servo attachment. Ensure the servos can move the surfaces fully and evenly. Test all controls for correct response before flying.

Wiring And Connecting Components

Wiring and connecting components is a key step in building a remote control plane with a camera. Proper connections ensure the plane works smoothly and the camera sends clear video signals. Each part must get the right power and link securely to other components. Careful wiring avoids crashes and poor performance.

Follow these steps to connect power, camera, video transmitter, servos, and receiver. This setup makes your plane ready for flight and live video streaming.

Power Distribution Setup

Start by connecting the battery to a power distribution board. This board splits power to all components safely. Use wires that match the current needs of your plane. Secure connections prevent power loss during flight. Add a voltage regulator if your parts need different voltages. Check polarity to avoid damage. Test power flow before moving on.

Connecting Camera And Video Transmitter

Attach the camera’s power wires to the distribution board output. Connect the camera’s video output to the video transmitter input. Use short, shielded cables to reduce signal noise. Fix the video transmitter antenna securely outside the plane body. Proper antenna placement improves signal range. Double-check all plugs fit tightly to avoid disconnection in flight.

Linking Servos And Receiver

Plug each servo’s power and signal wires into the receiver ports. Match each servo to its correct control channel. Secure wires to prevent movement and damage during flight. Connect the receiver to the power distribution board. Test servo movements with the remote controller to confirm correct links. Adjust servo arm positions for smooth control response.

Credit: www.amazon.com

Mounting The Camera

Mounting the camera on your remote control plane is a key step. It affects the quality of your flight videos and the control experience. Proper mounting ensures clear footage and steady shots. It also keeps the camera safe during flight and landings. This section covers how to mount your camera perfectly.

Choosing The Best Location

Pick a spot with a clear view ahead. The front of the plane’s fuselage works well. Avoid placing the camera near moving parts like propellers. The wing’s underside can also be a good choice. Ensure the camera lens is not blocked by any structure. This gives you an unobstructed view for recording.

Securing The Camera For Stability

Use strong tape or mounting brackets to hold the camera tight. The camera must not wobble during flight. Foam padding helps reduce vibrations and protects the camera. Avoid using heavy mounts that add extra weight. Balance is important to keep your plane flying well. Double-check the mount before every flight.

Adjusting Camera Angles

Set the camera angle to capture the best view. Tilting slightly downward shows the ground and landscape. A straight forward angle captures the horizon and distant objects. Test different angles on the ground before flying. Small adjustments can change your video quality a lot. Lock the angle firmly once you find the best position.

Configuring The Remote Control System

Configuring the remote control system is a vital step in building your remote control plane with a camera. It ensures your plane responds correctly to your commands. Proper setup of the transmitter and receiver creates a reliable connection. Adjusting control throws and rates helps the plane move smoothly. Testing control surfaces confirms everything works before flight. Follow these steps carefully to enjoy a safe and fun flying experience.

Binding Transmitter And Receiver

Binding connects your transmitter to the receiver on the plane. Turn on the transmitter first, then power the receiver. Press the bind button on the receiver. The transmitter will detect the receiver and link to it. A solid link allows your commands to reach the plane. Without binding, the plane will not respond to controls.

Setting Control Throws And Rates

Control throws determine how far the control surfaces move. Adjust these throws in your transmitter settings. Start with small throws for gentle movements. Rates control the speed of response from the control surfaces. Set lower rates for smooth flying. Higher rates give quick, sharp control but can be harder to handle. Balance throws and rates for your skill level and plane size.

Testing Control Surfaces

Check all control surfaces before flying. Move the sticks on the transmitter and watch the plane parts. The elevator should tilt up and down. The ailerons must roll the wings left and right. The rudder should turn the tail left and right. All movements should be smooth and match your stick commands. Fix any issues before your first flight to avoid crashes.

Credit: kdfoundation.org

Preparing For First Flight

Preparing for the first flight of your remote control plane with a camera is exciting and essential. This phase ensures your plane is ready to fly safely and capture great footage. Careful preparation helps avoid crashes and technical issues. Follow key steps to boost your confidence and control.

Performing Pre-flight Checks

Start by inspecting the plane’s body for damage or loose parts. Check that the camera is firmly attached and the lens is clean. Test the control surfaces like ailerons, rudder, and elevator to ensure they move correctly. Verify the battery is fully charged and securely connected. Confirm the remote control is working and linked to the plane. These checks reduce surprises during flight.

Choosing A Safe Flying Area

Select an open space free from trees, power lines, and buildings. Avoid crowded places to keep people safe. A large, flat field works best for beginners. Check local rules about flying drones or RC planes. Flying in a calm weather condition with little wind improves control and video quality. Safety is the top priority for your first flight.

Conducting Hand Launch Tests

Before full flight, try hand launching the plane gently. This helps test the motor and controls in a controlled way. Hold the plane steady and throw it forward with moderate speed. Keep your eyes on the plane’s response and adjust the controls as needed. Hand launch tests build confidence and reveal any control issues early. Practice this several times for better results.

Flying And Recording Tips

Flying a remote control plane with a camera adds excitement and creativity. To get the best results, follow some essential flying and recording tips. These tips help you keep control, capture clear videos, and avoid common issues during flight.

Maintaining Line Of Sight

Always keep your plane within your direct view. This helps you avoid crashes and control the plane safely. Watch the plane’s position against the sky or landmarks. Avoid flying too far or behind obstacles like trees or buildings. Staying in sight ensures better control and safer flying.

Optimizing Video Transmission

Check your camera and video transmitter settings before flying. Use a strong and clear signal for smooth video feed. Adjust the antenna position on the plane and receiver for better reception. Fly at a height where the signal is less likely to drop. Clear, stable video makes recording more enjoyable and useful.

Handling Signal Interference

Signal interference can cause video loss or control problems. Avoid flying near power lines, large metal objects, or crowded wireless areas. Change your flight path if you notice signal glitches. Use a different frequency channel if possible. Staying away from interference keeps your flight steady and video clear.

Credit: www.youtube.com

Legal And Safety Considerations

Building a remote control plane with a camera is exciting. Yet, understanding legal and safety rules is key. These rules keep you, others, and your plane safe. Following them helps avoid fines or accidents. Here are important points to consider before flying.

Regulations For Flying Rc Planes

Check local rules before flying your RC plane. Many places require registration of drones or RC aircraft. Follow altitude limits, usually below 400 feet. Avoid flying near airports or crowded areas. Some regions ask for special permits for cameras on RC planes. Respect these rules to fly legally and safely.

Privacy And Airspace Rules

Flying an RC plane with a camera means respecting privacy. Do not record people without permission. Avoid flying over private property without consent. Be aware of restricted airspace zones like military bases or national parks. Use apps or maps to check no-fly zones. This protects privacy and prevents legal trouble.

Safety Gear And Precautions

Wear safety glasses to protect your eyes during flight tests. Use gloves when handling sharp or hot parts. Always perform a pre-flight check on your plane. Make sure the battery is secure and controls respond well. Fly in open areas away from people and animals. Keep a first aid kit nearby for emergencies.

Frequently Asked Questions

How To Build A Remote Controlled Plane?

Build a remote controlled plane by designing the airframe, installing motors, servos, and a radio transmitter. Wire electronics carefully and test controls before flying.

Can You Put A Camera On An Rc Plane?

Yes, you can put a camera on an RC plane. Use a lightweight action or FPV camera for best results. Secure the camera firmly to avoid vibrations. This setup captures aerial footage and enhances your flying experience.

Is It Legal To Fly An Rc Plane?

Flying an RC plane is legal if you follow local regulations and airspace rules. Register with aviation authorities when required. Always avoid restricted areas and maintain visual line of sight. Check specific laws in your country or state before flying.

Is It Possible To Control A Plane Remotely?

Yes, remote control of planes is possible with RC model aircraft and drones. Civilian passenger planes lack this feature. Remote control suits hobbyist planes and prototypes only.

Conclusion

Building a remote control plane with a camera can be fun and rewarding. Start with simple materials and follow clear steps. Choose the right camera and ensure it fits well on your plane. Test your wiring and controls before flying.

Practice flying in open, safe spaces. This project helps you learn about electronics and flight basics. Enjoy capturing unique views from the sky. Keep improving your skills with each flight. Your DIY camera plane will give hours of enjoyment and learning.
